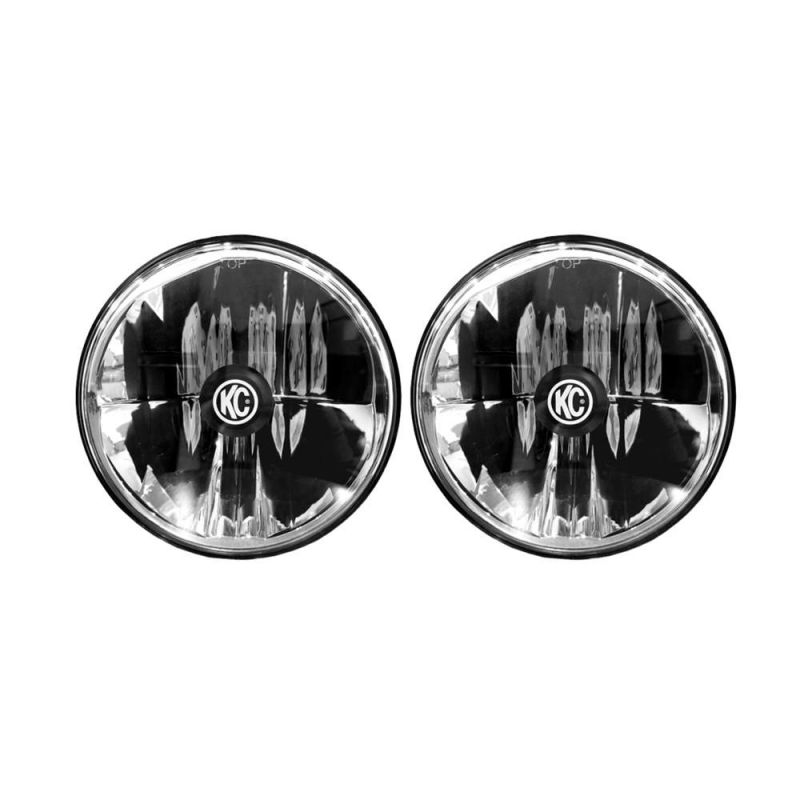

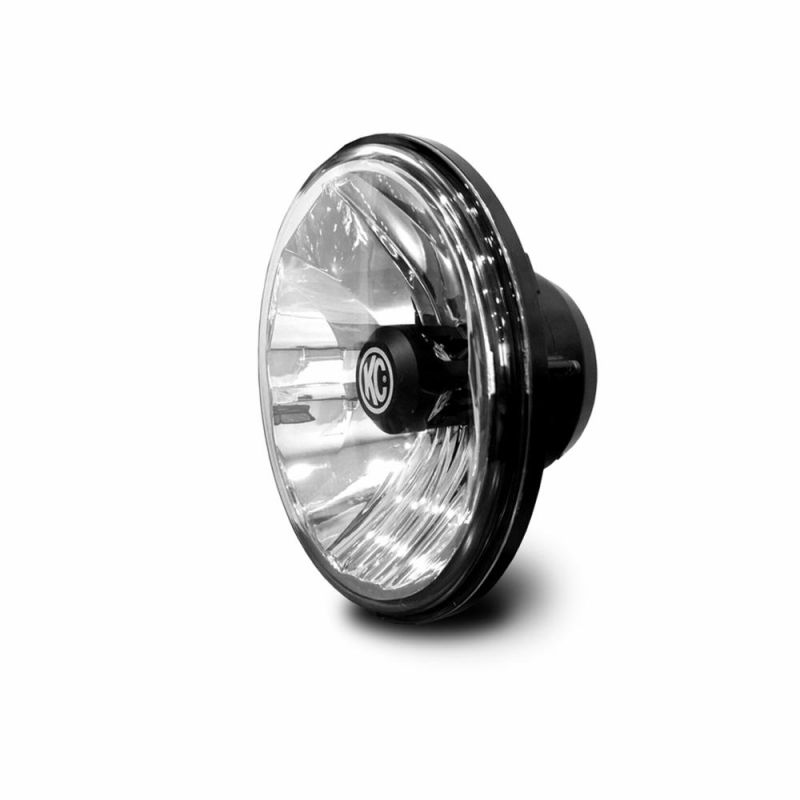

KC 7" Gravity® LED - Jeep TJ 97-06
KC HiLiTES Gravity LED 7" Jeep DOT Headlight features CREE LEDs for DOT compliant Low/High beam for 97-06 Jeep TJs. Diecast aluminum housing and polycarbonate lens for optimal performance. Pair includes H4 connectors, harness, and switch.
FEATURES
-2 x 40W Gravity® LED 7" Headlights
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 97-06 Jeep TJ Wrangler/7" Universal H4
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Lamp
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"
Parts Included in Pair Pack
-(2) Gravity® LED 7" Headlights
-Capacitor Harness
-Plug and Play Connectors, Jeep TJ/7" Universal H4
-30 Amp LED Switch w/ Panel
-Mounting Hardware
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality. Greatly improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights, as well retrofit 7" round headlight openings on classic domestic, European and JDM vehicles.
DESIGNED FOR DURABILITY
Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
